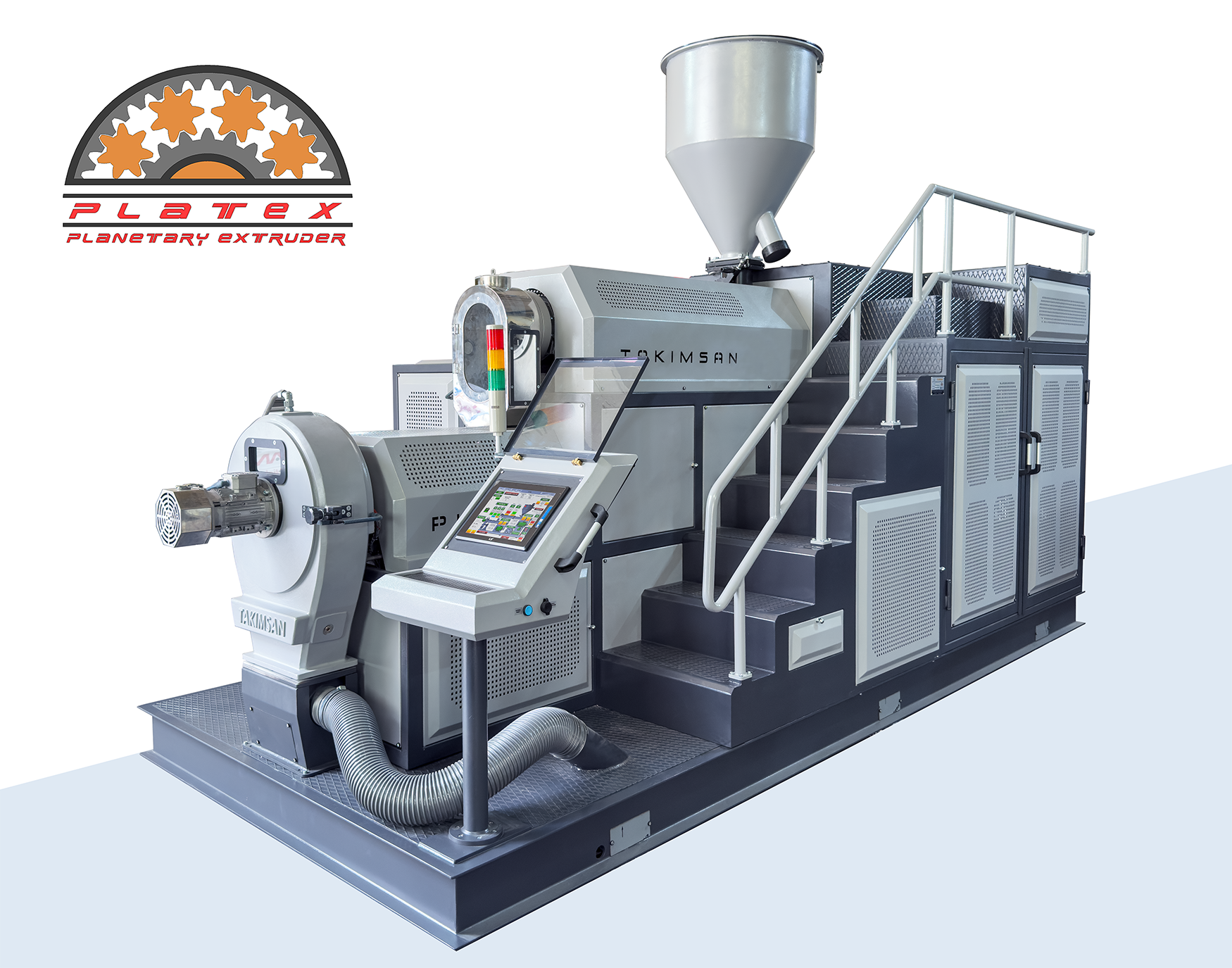

Planetary Roller Extruder Engineered in Türkiye Since 1995
ISO 9001:2015 & CE certified. Academically validated. Trusted in 40+ countries. Eight models from 45 kg/hr laboratory scale to 2,500 kg/hr production, at 30–50% lower investment than European alternatives.
58-second clip: raw material entering the feed hopper, PVC granules exiting the discharge unit — real production, no animation.
- 45–2,500
- kg/hr capacity
- 8
- PLATEX models
- 40+
- countries
- 1981
- founded
Why Choose PLATEX by Takımsan
The planetary advantage — precise temperature control, high filler capacity and self-cleaning geometry — at substantially lower capital cost.
-
Gentle, Low-Temperature Processing
Heat transfers across a melt film only 0.1–1 mm thin, not through viscous shear. Melt temperatures run 15–30 °C below an equivalent twin-screw: ideal for heat-sensitive PVC, TPU, bioplastics and masterbatch.
-
Self-Cleaning Geometry
Satellite spindles continuously wipe each other clean. No dead zones, and colour changeover typically under 10 minutes against 30–60 minutes on a twin-screw.
-
High Filler Loading to 80%
Up to 80 % filler by weight, and up to 400 PHR depending on the polymer: calcium carbonate, talc and flame retardants at loadings that overload twin-screw systems.
-
Lower Energy Consumption
20–25 % less energy than an equivalent twin-screw. At 1,200 kg/hr a PLATEX draws about 62–70 kW against 95–110 kW, an estimated saving of €12,000–20,000 a year.
-
Academically Validated
Cited by Formela and Eyigöz as one of two manufacturers globally producing lab-scale planetary roller extruders. Independent academic recognition of the engineering.
-
30–50% Lower Investment
Same planetary technology as European systems, manufactured in İstanbul under ISO 9001:2015. 1 m of planetary barrel replaces about 4 m of twin-screw, with substantially lower capital cost.
Eight Models, 45 to 2,500 kg/hr
Lab scale through full production. PLATEX by Takımsan covers every throughput requirement.
PLATEX 80 (Lab. Scale)
- Capacity
- Max 45 kg/hr
- Motor Powers
- 15 / 15 kW
- Heating
- oil or electric
- Satellites
- Max 14
PLATEX 100
- Capacity
- 100–200 kg/hr
- Motor Powers
- 45 / 45 kW
- Heating
- oil or electric
- Satellites
- Max 8
PLATEX 155
- Capacity
- 450–800 kg/hr
- Motor Powers
- 55 / 55 kW
- Heating
- oil or electric
- Satellites
- 8–13
PLATEX 165
- Capacity
- 600–1100 kg/hr
- Motor Powers
- 75 / 55 kW
- Heating
- oil or electric
- Satellites
- 10–14
PLATEX 185
- Capacity
- 750–1500 kg/hr
- Motor Powers
- 90 / 55 kW
- Heating
- oil or electric
- Satellites
- 12–16
PLATEX 200
- Capacity
- 850–1800 kg/hr
- Motor Powers
- 110 / 55 kW
- Heating
- oil
- Satellites
- 10
PLATEX 215
- Capacity
- 1000–2000 kg/hr
- Motor Powers
- 132 / 90 kW
- Heating
- oil
- Satellites
- 12–14
PLATEX 290
- Capacity
- 1500–2500 kg/hr
- Motor Powers
- 355 / 160 kW
- Heating
- oil
- Satellites
- 14–16
Applications
Heat-sensitive materials, high filler loadings and demanding compounds. PLATEX by Takımsan supports seven application families.
Soft PVC Compounding
Cable compounds, hose and flexible profile at low melt temperature. Uniform plasticiser dispersion, rapid colour changes.
View application Rigid PVCRigid PVC Compounding
Window profiles, pipe and cladding without degradation risk. Precise temperature control across the whole melt film.
View application BioplasticBioplastic Compounding
Low-shear processing for PLA, PHA and PBAT. Precise temperature control prevents thermal degradation of heat-sensitive bio-based polymers.
View applicationOEM-Quality Spare Parts for Planetary Extruders
Takımsan supplies satellite spindles, central spindles, barrel sections and granulation heads to PLATEX extruder lines and extruder lines of other planetary extruder systems globally. The same precision manufacturing, available as replacement parts.
- Satellite spindles
- Central spindles
- Barrel sections
- Granulation heads
- Feed components
Replacement parts for
Planetary Roller Extruder Systems
- Satellite spindles In stock
- Central spindles In stock
- Barrel sections In stock
- Granulation heads In stock
- Feed components In stock
Talk to our team
Over 30 years of planetary roller technology. Tell us your process — we will size the right machine.
